Getting started with TorchSim

This tutorial walks through running a short NVE molecular dynamics simulation with a metatomic model and TorchSim.

Prerequisites

Install the integration package and its dependencies:

pip install metatomic-torchsim

We start by importing the modules we need:

from typing import Dict, List, Optional

import ase.build
import torch
from metatensor.torch import Labels, TensorBlock, TensorMap

import metatomic.torch as mta
from metatomic_torchsim import MetatomicModel

Warp DeprecationWarning: The symbol `warp.vec` will soon be removed from the public API. Use `warp.types.vector` instead.

Export a simple model

For this tutorial we create and export a minimal model that predicts energy as a (trivial) function of atomic positions. The energy must depend on positions so that forces can be computed via autograd. In practice you would use a pre-trained model loaded from a file.

class HarmonicEnergy(torch.nn.Module):
    """A minimal model: harmonic restraint around initial positions."""

    def __init__(self, k: float = 0.1):
        super().__init__()
        self.k = k

    def forward(
        self,
        systems: List[mta.System],
        outputs: Dict[str, mta.ModelOutput],
        selected_atoms: Optional[Labels] = None,
    ) -> Dict[str, TensorMap]:
        energies: List[torch.Tensor] = []
        for system in systems:
            # energy = k * sum(positions^2) -- differentiable w.r.t. positions
            e = self.k * torch.sum(system.positions**2)
            energies.append(e.reshape(1, 1))

        energy = torch.cat(energies, dim=0)

        block = TensorBlock(
            values=energy,
            samples=Labels("system", torch.arange(len(systems)).reshape(-1, 1)),
            components=[],
            properties=Labels("energy", torch.tensor([[0]])),
        )
        return {
            "energy": TensorMap(keys=Labels("_", torch.tensor([[0]])), blocks=[block])
        }

Build an AtomisticModel wrapping the raw module:

raw_model = HarmonicEnergy(k=0.1)
capabilities = mta.ModelCapabilities(
    length_unit="Angstrom",
    atomic_types=[14],  # Silicon
    interaction_range=0.0,
    outputs={"energy": mta.ModelOutput(quantity="energy", unit="eV")},
    supported_devices=["cpu"],
    dtype="float64",
)

atomistic_model = mta.AtomisticModel(
    raw_model.eval(), mta.ModelMetadata(), capabilities
)

Load the model

Wrap the model with MetatomicModel. You can pass an AtomisticModel directly, or a path to a saved .pt file:

model = MetatomicModel(atomistic_model, device="cpu")

The wrapper detects the model’s dtype and supported devices automatically. Pass device="cuda" to run on GPU when available.

print("dtype:", model.dtype)
print("device:", model.device)

dtype: torch.float64
device: cpu

Build a simulation state

TorchSim works with SimState objects. Convert ASE Atoms using torch_sim.initialize_state:

import torch_sim as ts  # noqa: E402


atoms = ase.build.bulk("Si", "diamond", a=5.43, cubic=True)
sim_state = ts.initialize_state(atoms, device=model.device, dtype=model.dtype)

print("Number of atoms:", sim_state.n_atoms)

Number of atoms: 8

Evaluate the model

Call the model on the simulation state to get energies, forces, and stresses:

results = model(sim_state)

print("Energy:", results["energy"])  # shape [1]
print("Forces shape:", results["forces"].shape)  # shape [n_atoms, 3]
print("Stress shape:", results["stress"].shape)  # shape [1, 3, 3]

Energy: tensor([15.4796], dtype=torch.float64)
Forces shape: torch.Size([8, 3])
Stress shape: torch.Size([1, 3, 3])

Run NVE dynamics

Use TorchSim’s NVE (Velocity Verlet) integrator to run a short trajectory. nve_init samples momenta from a Maxwell-Boltzmann distribution at the given temperature, and nve_step advances by one timestep:

import matplotlib.pyplot as plt  # noqa: E402
from torch_sim.integrators import nve_init, nve_step  # noqa: E402
from torch_sim.units import MetalUnits  # noqa: E402


sim_state = ts.initialize_state(atoms, device=model.device, dtype=model.dtype)

# Initialize NVE state with momenta at 300 K (in eV units)
kT = 300.0 * MetalUnits.temperature  # kelvin -> eV
md_state = nve_init(sim_state, model, kT=kT)

energies = []
steps = []
dt = 1.0  # femtoseconds

for step in range(50):
    md_state = nve_step(md_state, model, dt=dt)
    energies.append(md_state.energy.sum().item())
    steps.append(step)

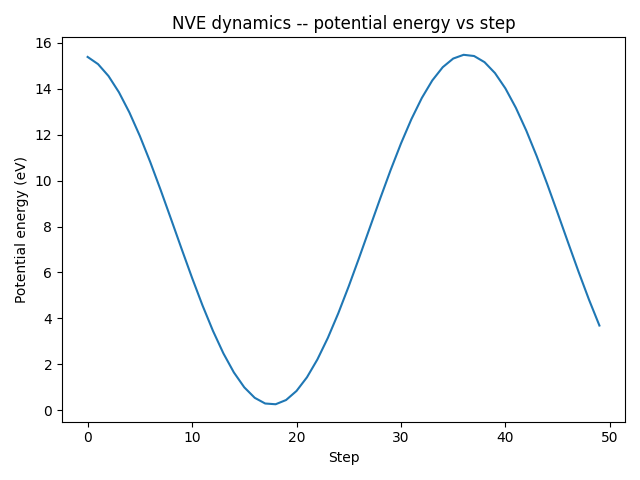

plt.plot(steps, energies)
plt.xlabel("Step")
plt.ylabel("Potential energy (eV)")
plt.title("NVE dynamics -- potential energy vs step")
plt.tight_layout()
plt.show()

Note

With a real interatomic potential the total energy would stay approximately constant in an NVE simulation, which serves as a basic sanity check.

Next steps

• Batched simulations with TorchSim explains running multiple systems at once
